Darkglass Electronics NSG Noisegate Pedal

Darkglass Electronics NSG Noisegate Pedal

Regular price $258.00 USD
Regular price Sale price $258.00 USD
Sale Contact for Pre-Order
Tax included. Shipping calculated at checkout.

Enhancing quietness

The NSG: Noise Gate comes as a response to these annoyances. Utilizing an adjustable threshold level to filter out sounds below a certain threshold, allowing for only the desired audio to be seized.

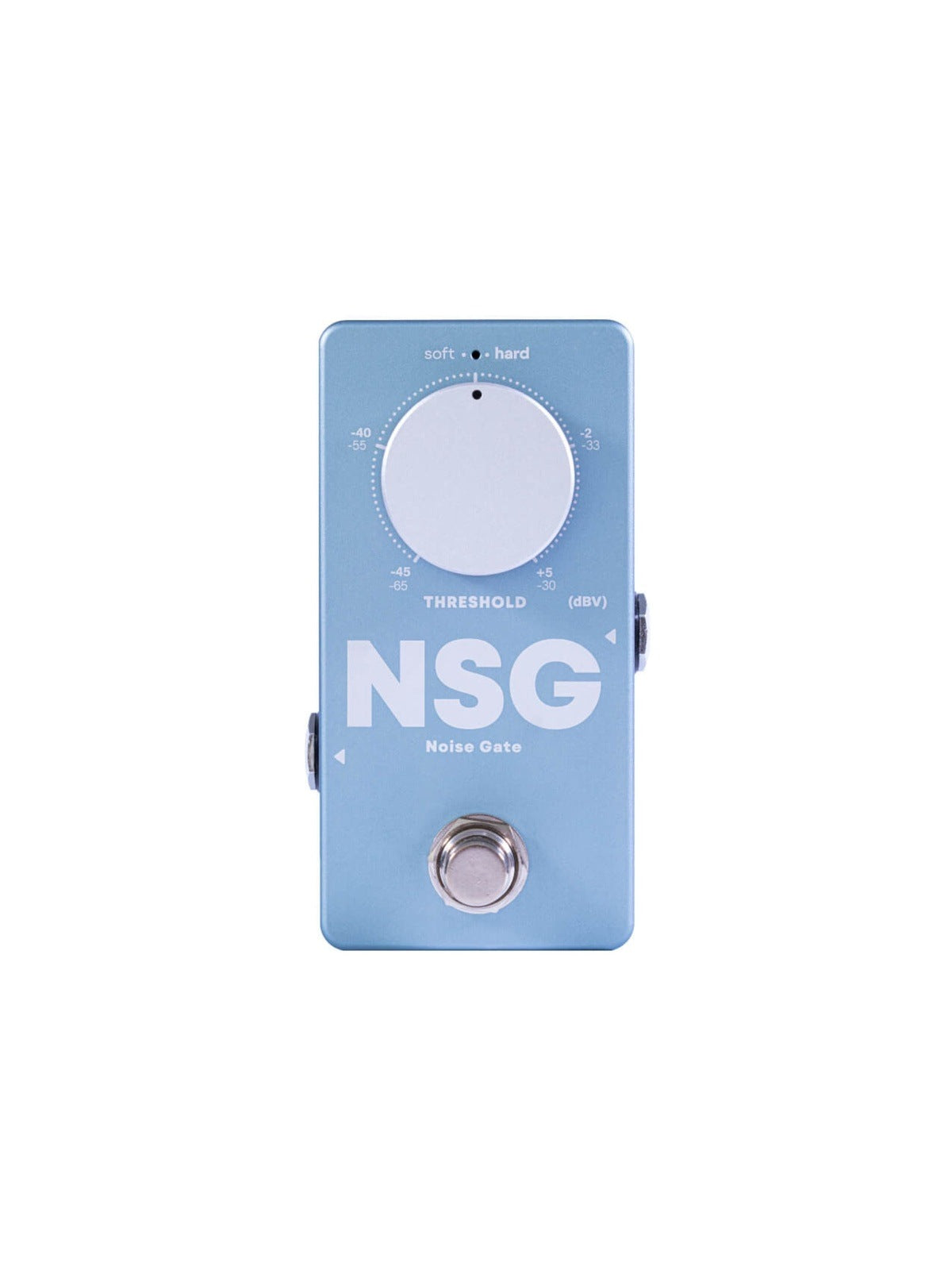

Front features

Threshold

Use this push knob to control the threshold of the noise gate. Press the knob to switch between the “Soft” mode (Blue LED color) for softer gain reduction and “Hard” (Red LED color) for the more aggressive gate operation.

Threshold range

From -65 dBV to -30 dBV in “Soft” mode.
From -45 dBV to +5dBV in “Hard” mode.

Dimensions

Width: 50 mm /2″
Length: 36,5 mm/ 1 ½″
Height: 100 mm / 4″
Weight: 205 g / 0,45 lb


Technical Specifications

Input Impedance: 1 MΩ
Output Impedance: 100 kΩ
Current Consumption: ~60 mA
Voltage 9V DC (Center Negative)

Warning

The NSG Noise Gate has a current draw of 60 mA. Only use a regulated 9V DC adapter with a center-negative plug.

Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
