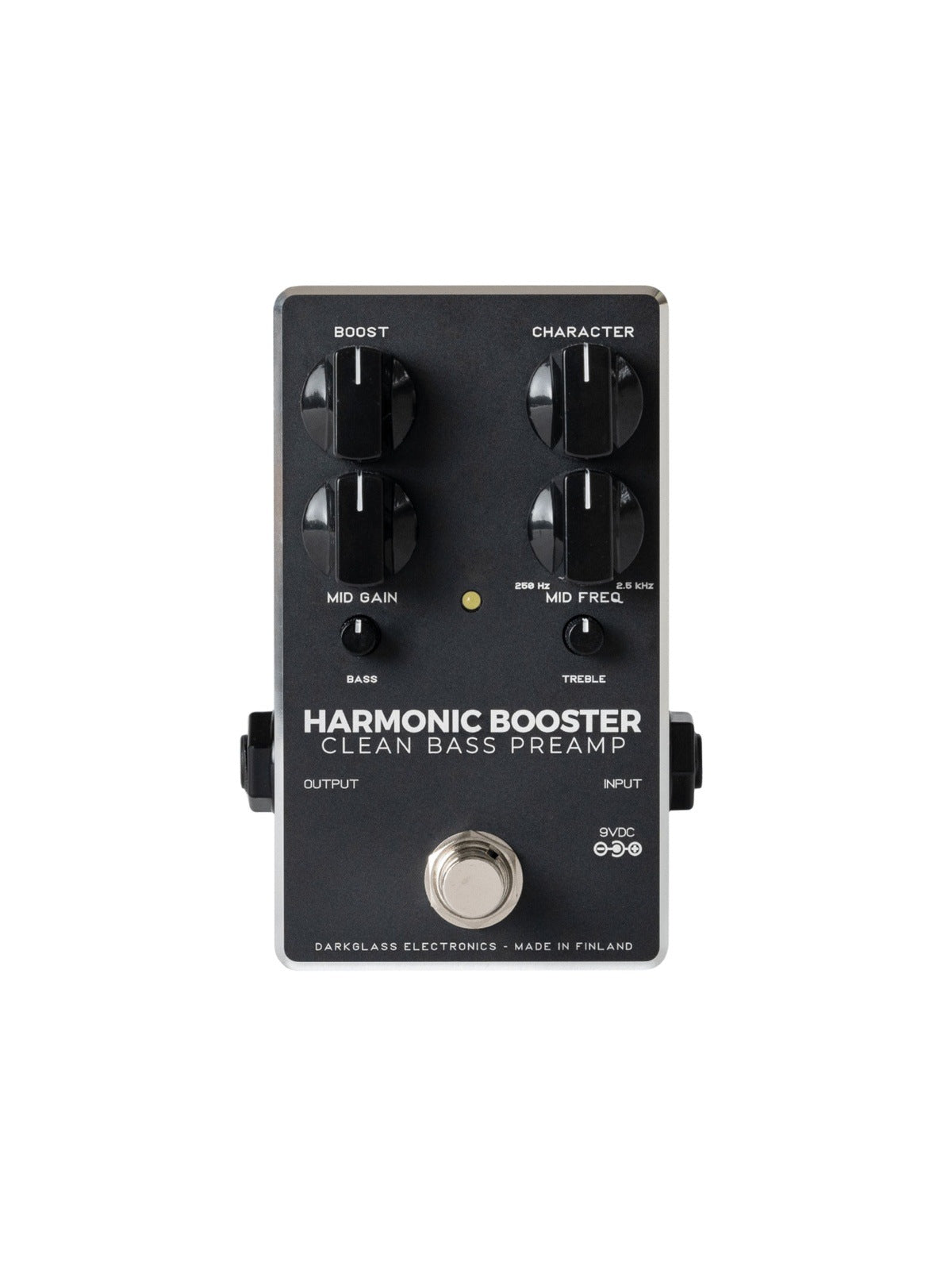

Darkglass Electronics Harmonic Booster Bass Preamp Pedal
Darkglass Electronics Harmonic Booster Bass Preamp Pedal
Couldn't load pickup availability
Clean Bass Preamp.
Designed to be the perfect complement to our distortion circuits, the flexibility and portability of the Harmonic Booster is also the perfect one-stop solution for gigging musicians in search of a precise and harmonically rich clean preamplifier.
Specs
Boost
Flat -20dB to +20dB cut or boost.
Character
Allows blending in the perfect amount of the tone-shaping circuitry. It can be set counter-clockwise for a flatter frequency response.
Mid gain
+-20dB @ the frequency selected by “Mid Frequency”
Mid Frequency
Mid frequency from 250Hz to 2.5kHz.
Bass
+-20dB @ 80 Hz.
Treble
+-20dB @ 5 kHz
Output
Connect from the ¼” Output jack to the input of your amplifier or another effects pedal.
Input
Connect your instrument or output from your pedal board to the ¼” mono jack.
9V DC
Only use a regulated 9V DC adapter with a center-negative plug.
Dimensions
Width: 75 mm / 3″
Length: 111 mm/ 4¼″
Height: 43 mm / 1¾″
Weight: 250 g / 0.55 lb
Warning
The Harmonic Booster has a current draw of 30mA. Only use a regulated 9V DC adapter with a center-negative plug.
Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty
